20ft Refrigerated Shipping Container Specifications
| Exterior | Interior | Door Openings | Trip Weight | Fork Pockets |
Length: 19' 10 1/2" Width: 8' Height: 8' 6" | Length: 17' 11" Width: 7' 8" Height: 7' 6" | Width: 7' 5" Height: 7' 3" | Tare: 6503 lbs Max Gross: 52,800 lbs Cubic Cap: 1,010 cu. ft | Height: 0' 4 1/2" Width: 1' 2 3 /16" Center: 6' 9 7/8" |
Agile Star proudly presents the 20FT Refrigerated Shipping Container, designed to meet the rigorous demands of temperature-sensitive storage. Capable of maintaining any designated temperature within the range of 75 degrees to -20 degrees Fahrenheit, this container ensures your goods remain safe and secure during transit or storage.

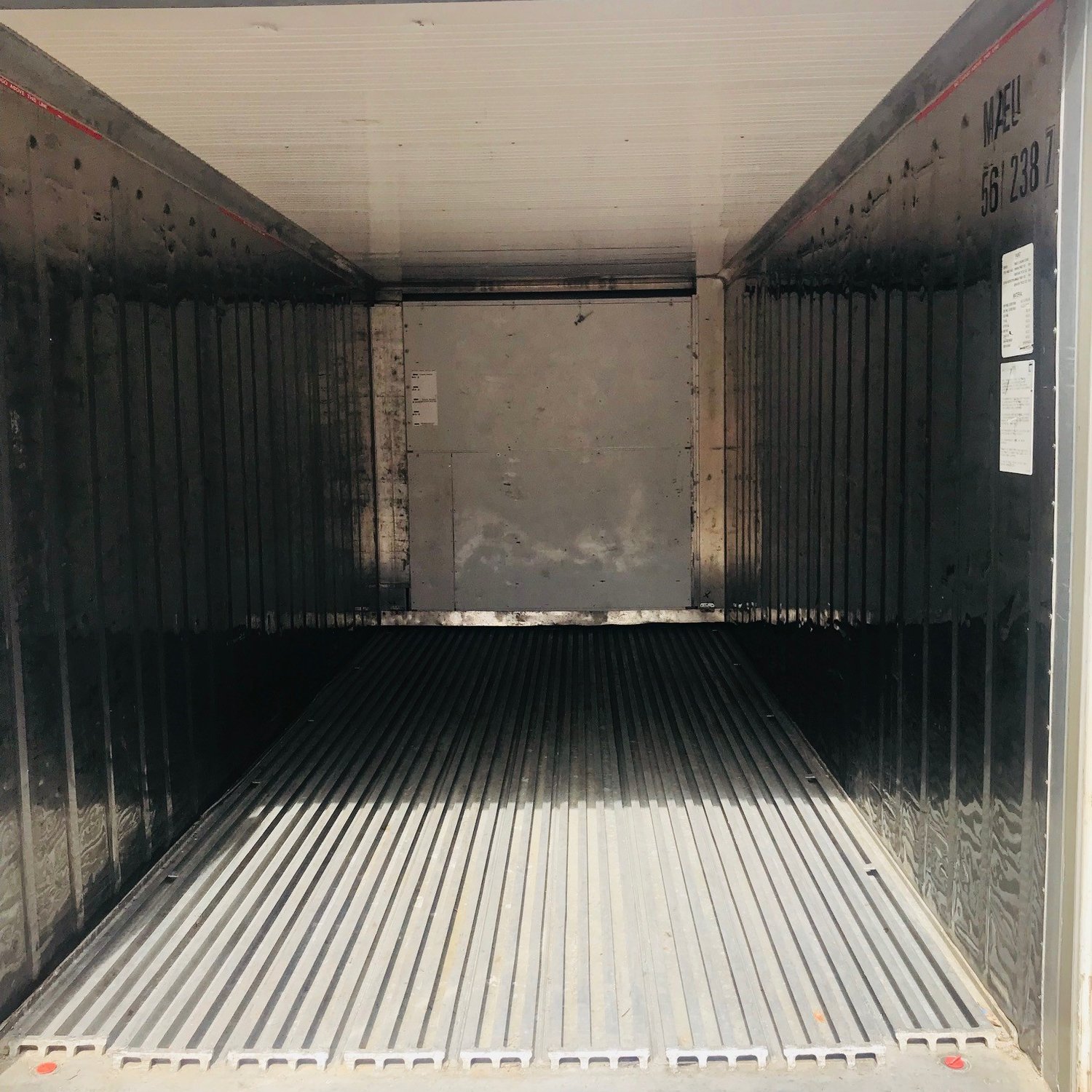

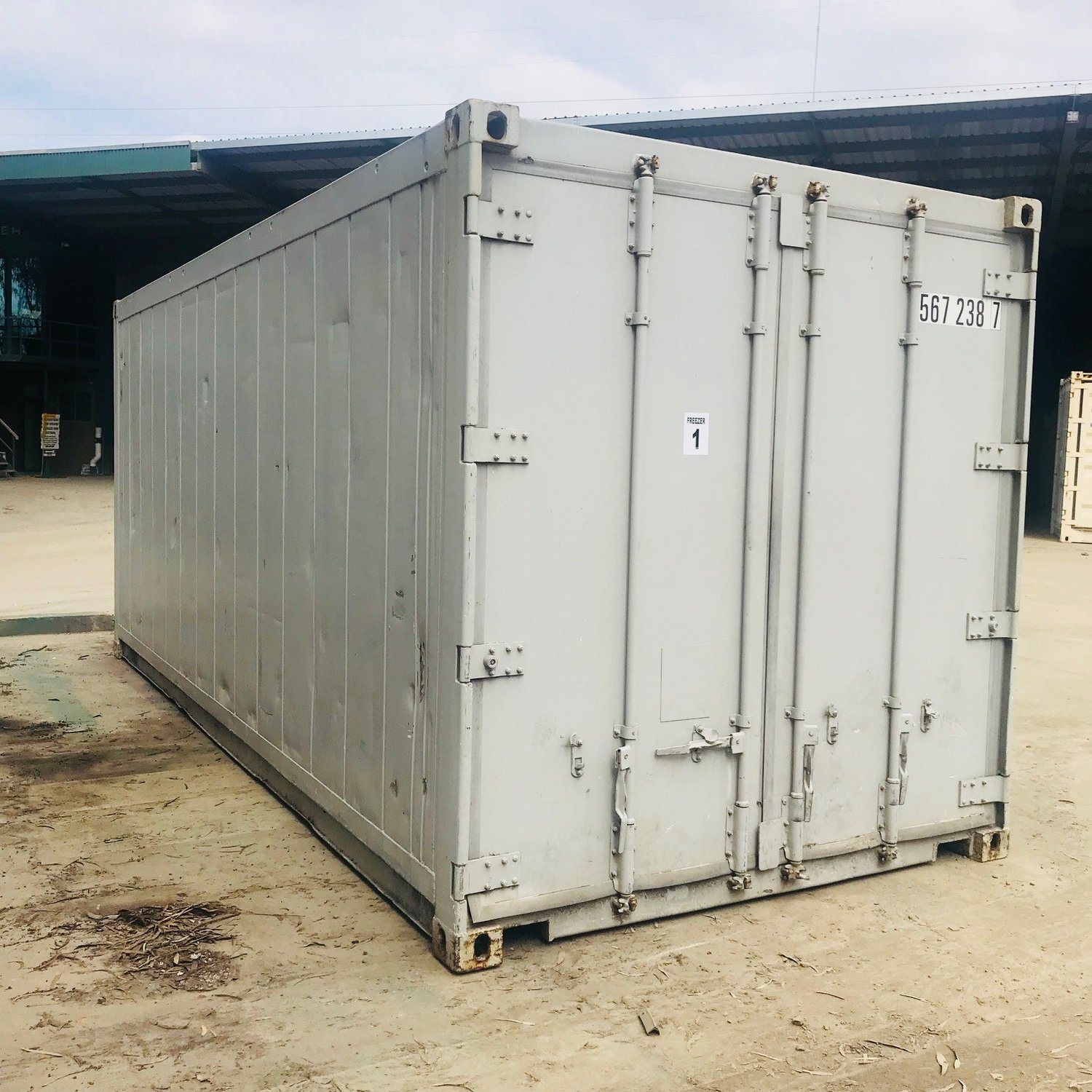

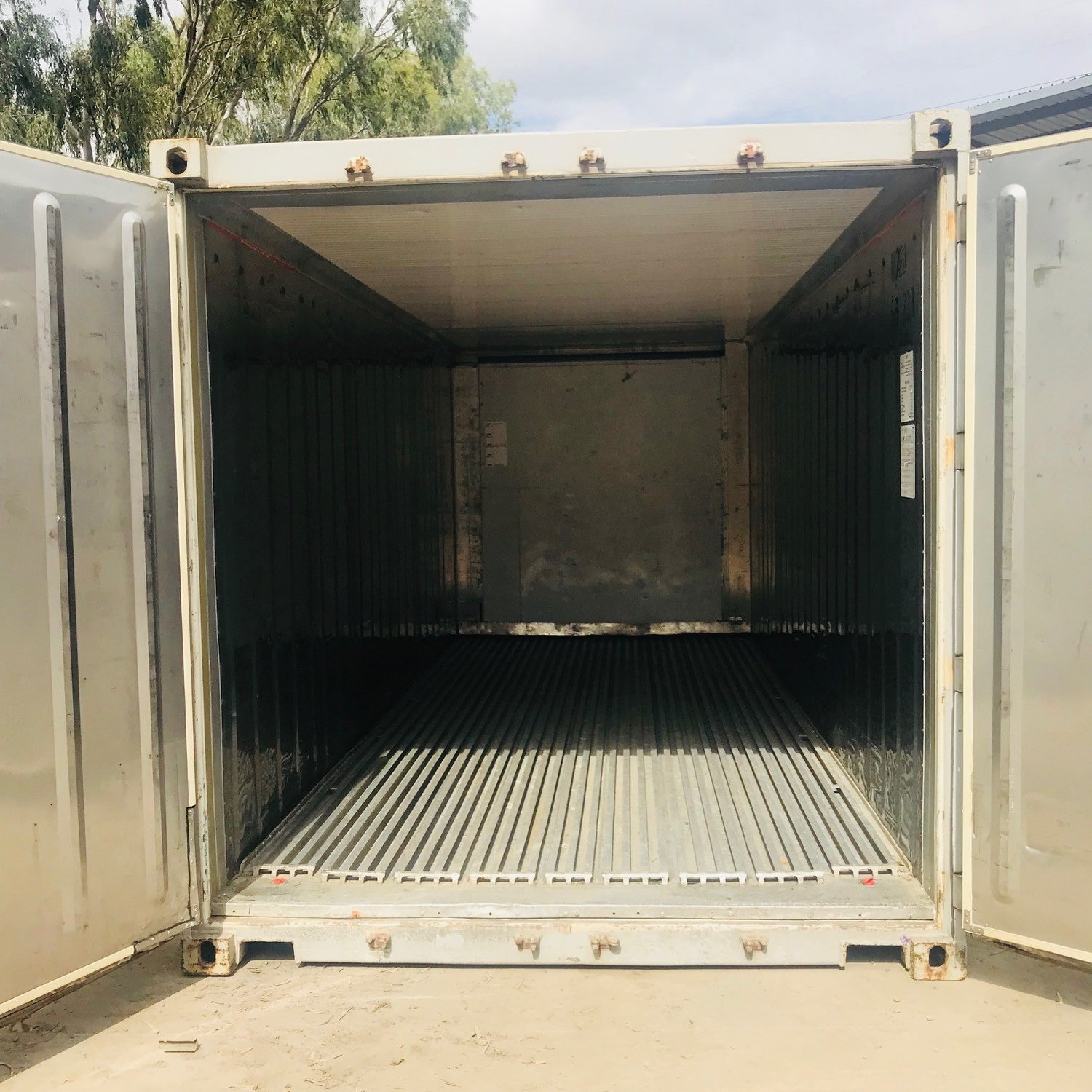

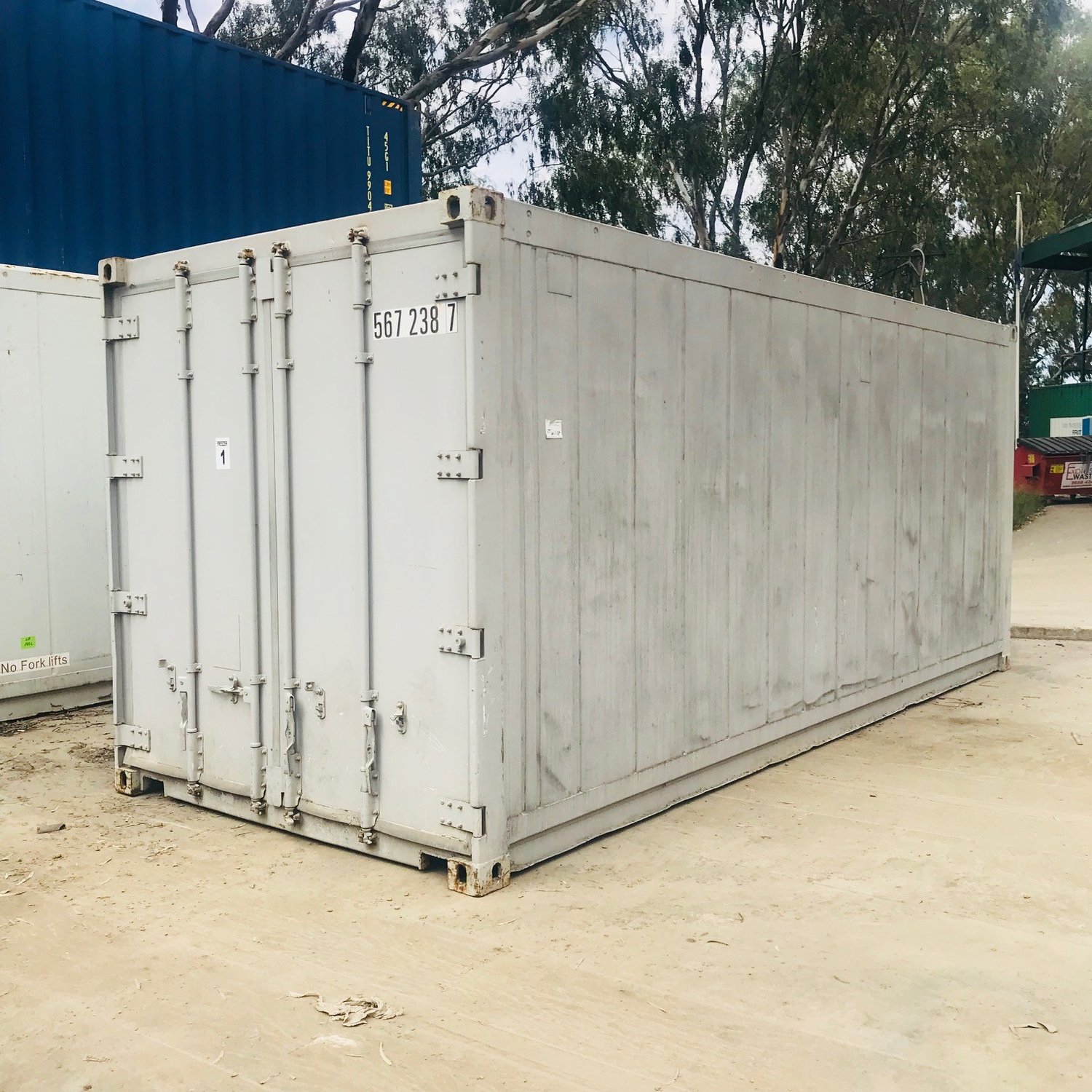

The 20FT Refrigerated Shipping Container is constructed with high-quality materials to ensure optimal insulation and durability. The exterior dimensions include a length of 19 feet 10 1/2 inches, a width of 8 feet, and a height of 8 feet 6 inches. Inside, the dimensions measure 17 feet 11 inches in length, 7 feet 8 inches in width, and 7 feet 6 inches in height.
This container boasts a tare weight of 6,503 lbs, a maximum gross weight of 52,800 lbs, and a cubic capacity of 1,010 cu. ft, making it suitable for a variety of applications. The door openings measure 7 feet 5 inches in width and 7 feet 3 inches in height, facilitating easy access for loading and unloading.

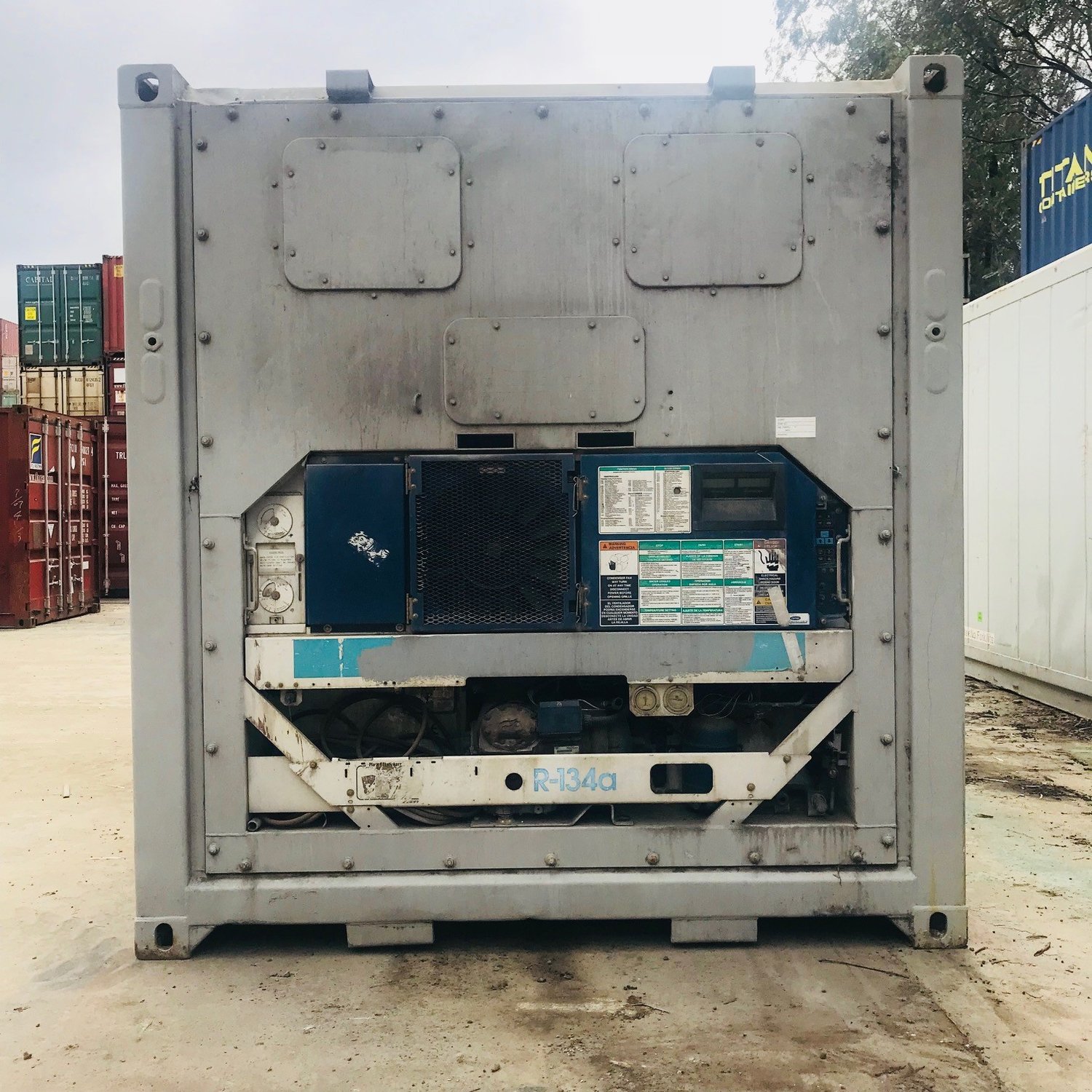

Our refrigerated units are designed to operate on 50 or 60 Hz systems, requiring three phases of power. The power supply must be grounded with circuit breakers rated at a minimum of 30 amps. For a 208/230 volt power supply, the circuit breakers need to be at least 50 amps. The container's electrical system can handle voltage variances of (+) or (-) 15%, while protecting against electrical surges.
Fuses are included to safeguard the control circuits and fan motors, ensuring reliable operation. Each unit is delivered with a standard ISO CEE 59-foot power plug and a 460-volt cable. Please note that the 230-volt cable does not come equipped with a power plug, so it's essential to consider your power supply needs when ordering.
The 20FT Refrigerated Shipping Container is ideal for various industries requiring temperature-controlled environments. Whether you are storing perishable goods, pharmaceuticals, or sensitive electronic equipment, this container provides a secure and reliable solution. Its adaptability makes it perfect for food transportation, cold storage at events, and even agricultural use.
With growing awareness of the need for safe and regulated temperature control, this container aligns with the latest industry trends and user demands for efficient and effective refrigerated solutions.
The design of our refrigerated shipping container ensures superior insulation, helping to maintain consistent temperatures even under challenging conditions. Built to withstand the rigors of shipping and storage, these containers are robust and reliable, providing peace of mind that your goods are protected from external elements.
The combination of advanced insulation and a powerful refrigeration system means you can trust Agile Star's containers to deliver optimal performance every time.
At Agile Star, we are dedicated to providing high-quality refrigerated solutions that meet the specific needs of our customers. Our 20FT Refrigerated Shipping Container is not just another storage unit; it represents our commitment to excellence and customer satisfaction. With a focus on reliability, efficiency, and innovation, we are your trusted partner in cold storage solutions.
For more information about our 20FT Refrigerated Shipping Container and to explore our range of options, visit our products page. Our team is ready to assist you in finding the perfect refrigerated solution tailored to your needs. Don’t hesitate to contact us today for a consultation or to ask any questions regarding our containers. We look forward to helping you secure the ideal storage solution for your requirements!
